Blue Color PLC Controlled Industrial Automatic Block Ice Making Machine with Excellent

Applicable Industries : Construction works , Other, Ice Making Machine

Condition : New

Place of Origin : Jiangsu, China

Ice Shape : ICE BLOCK

Voltage : 380v~440v

Power : 59.15kw

Weight : 12000 KG

Warranty : 1 Year

Key Selling Points : High Productivity

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Compressor, Evaporator, Condenser

Application : Industrial, Fresh-keeping

Product name : Big Ice Maker Machine

Cooling way : Water Cooling System

Refrigerant : R404a/R22

Material : Aluminium

Ice weight : 20kg/25kg/50kg

Control system : Siemens PCL Program Control System

Color : Blue

After-sales Service Provided 1 : 15 months

After-sales Service Provided 2 : On site installation

Packaging Details : Well wrapped with plastic film and shipped in standard shipping container.

Port : Shanghai Port, China

Supply Ability : 100 Set/Sets per Quarter

Price : $26,000.00/units >=1 units

MOQ : 1pc

Contact Now

Product Description

Blue Color PLC Controlled Industrial Automatic Block Ice Making Machine with Excellent

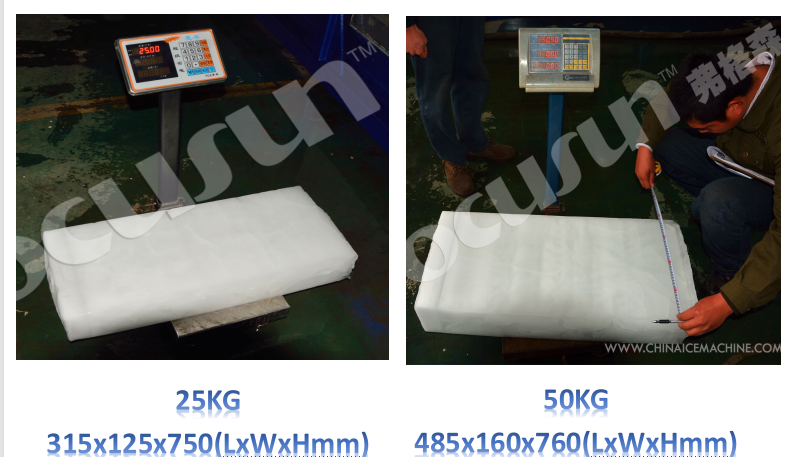

Block Ice Weight for Options

Ice Moving Device for Options

Aluminum direct refrigeration block ice machine is also called direct refrigeration block ice machine, direct fast cooling ice machine (block ice machine). The principle is to use the specially designed cooling channel of the ice making box to carry on the circulation of the low temperature refrigerant, so as to rapidly cool the water in the box and realize rapid ice making.

Adopts modular design

The large capacity direct refrigeration block ice machine is divided into machine modular, evaporator modular and outside cooling modular, convenient to transport and install.

Automatic Refrigeration Technology

Ice thawing and iced office are fully-automatic. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes.

Detailed Images

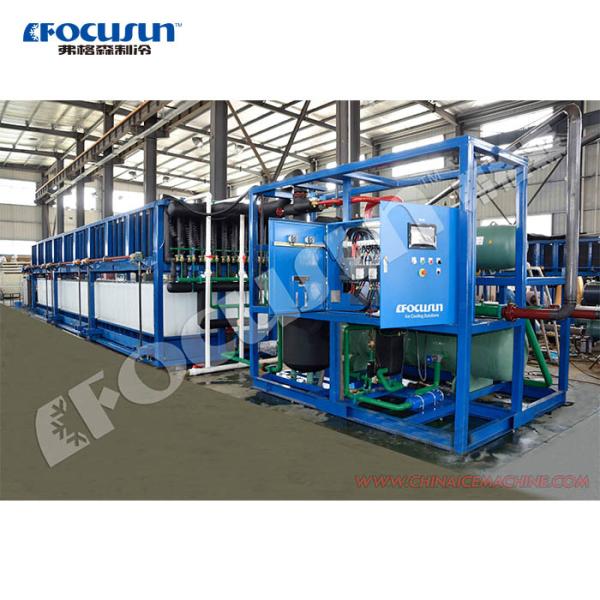

Machine Composition

Parts: evaporator,unit of refrigeration
Material: water
Capacity: 15T/day
We can produce with different capacity according to the request of customer.

Details

Machine modular: includes compressor, liquid reservoir, water cooling condenser, cooling pipe, valve, control box and so on.

Outside cooling modular: water cooling tower, air cooling condenser, evaporative condenser. They are usually placed outside.
Evaporator modular: evaporator modules are divided into one or several sizes according to the size of evaporator.

Features-I

1. Adopt dense special formula aluminum alloy as evaporator, improve heat exchange effect, real rust prevention and corrosion protection, guarantee service life

2. The water contact between the water tank and the water is made of aluminium plate, and the material is not rusty

3. Thermal fluoridation. In the inlet water temperature of 20 degrees, water temperature, the ice doffing time is 23 minutes, fast and energy saving

Features-II

4. The overall modular equipment makes transportation, moving, field installation very simple

5. According to different ice size, we are tailor-made for customers for each direct refrigeration block ice machine

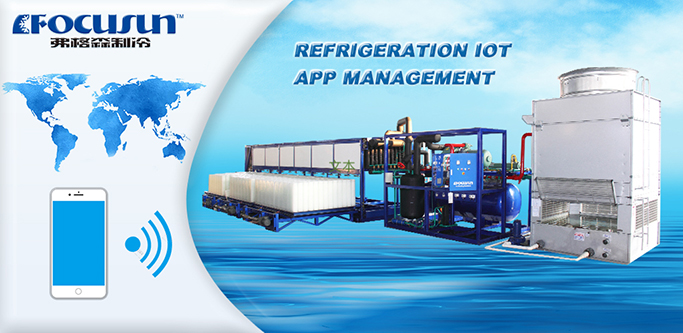

Smart APP- Remote control

Remote control app developed by Focusun which is an intelligent software, can turn on/ off the machine remotely, monitor working detailed information timely, has automatic alarm of maintenance and after service, provides parts working performance on line anywhere and any time.

Packing & Delivery

1.Standard 20ft or 40ft container. 2. A complete block ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine comes into use, customer only need prepare power for the machine. 4. All required components for installing the machine will be provided.

Related Products

Certifications

FAQ

Q1. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q5: How do you make our business long-term and good relationship?

1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Exhibition

About Focusun

FOCUSUN Developed the First Tube Ice Machine in the World traced back to 1929！

Jüergen Hans invented the tube ice machine in 1929 and founded Külinda in 1932, becoming the only tube ice machine manufacturer in Europe. His son, A.P. Focusun, further developed the technology and obtained a US patent in 1939. In 1950, A.P. FOCUSUN founded Külinda (USA) in Albany, which later became the FOCUSUN Company. FOCUSUN adjusted its strategy in 2002 to focus on research and technology consulting and entered China by establishing Ferguson Refrigeration (Shanghai) Equipment Co., Ltd. The company expanded to new markets in Africa, the Middle East, and South America, becoming a widely recognized brand in the ice machine industry.
